Mid Wall Lap Siding Transition Weep Screed
Creates Transition to Lap Siding

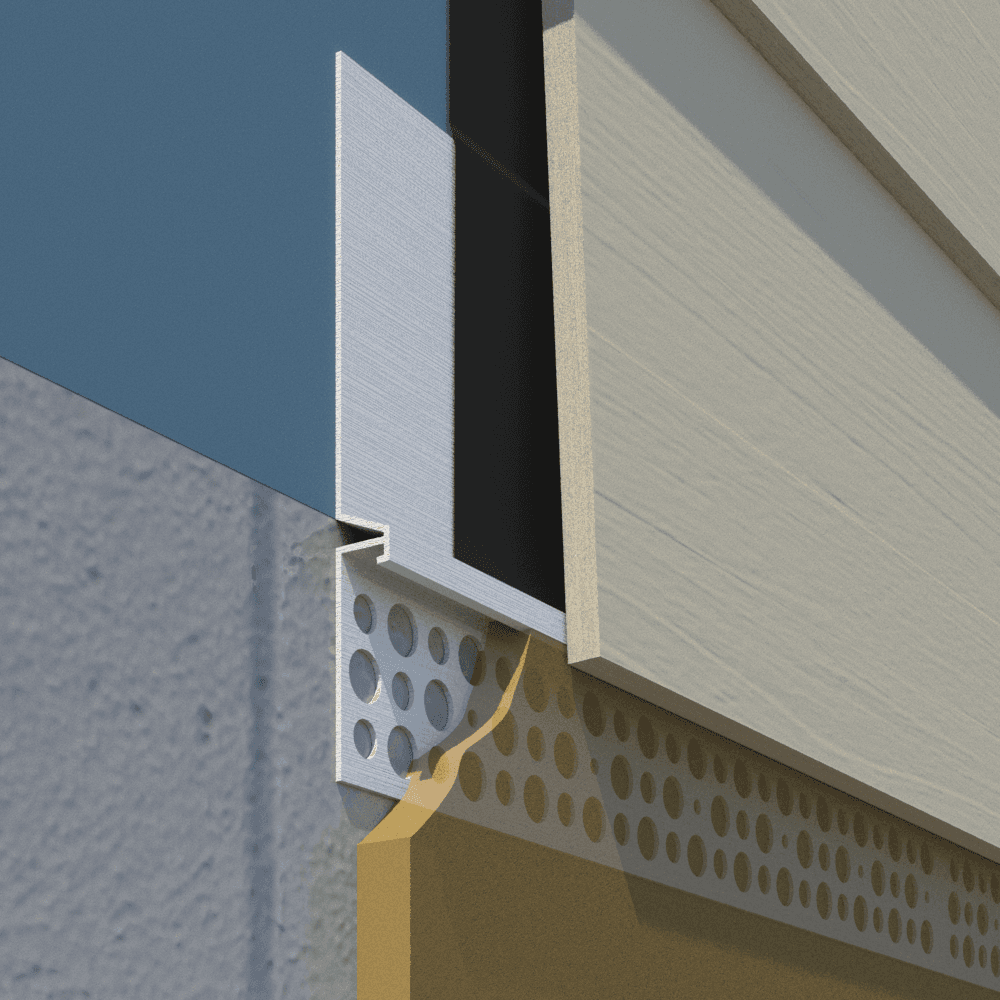

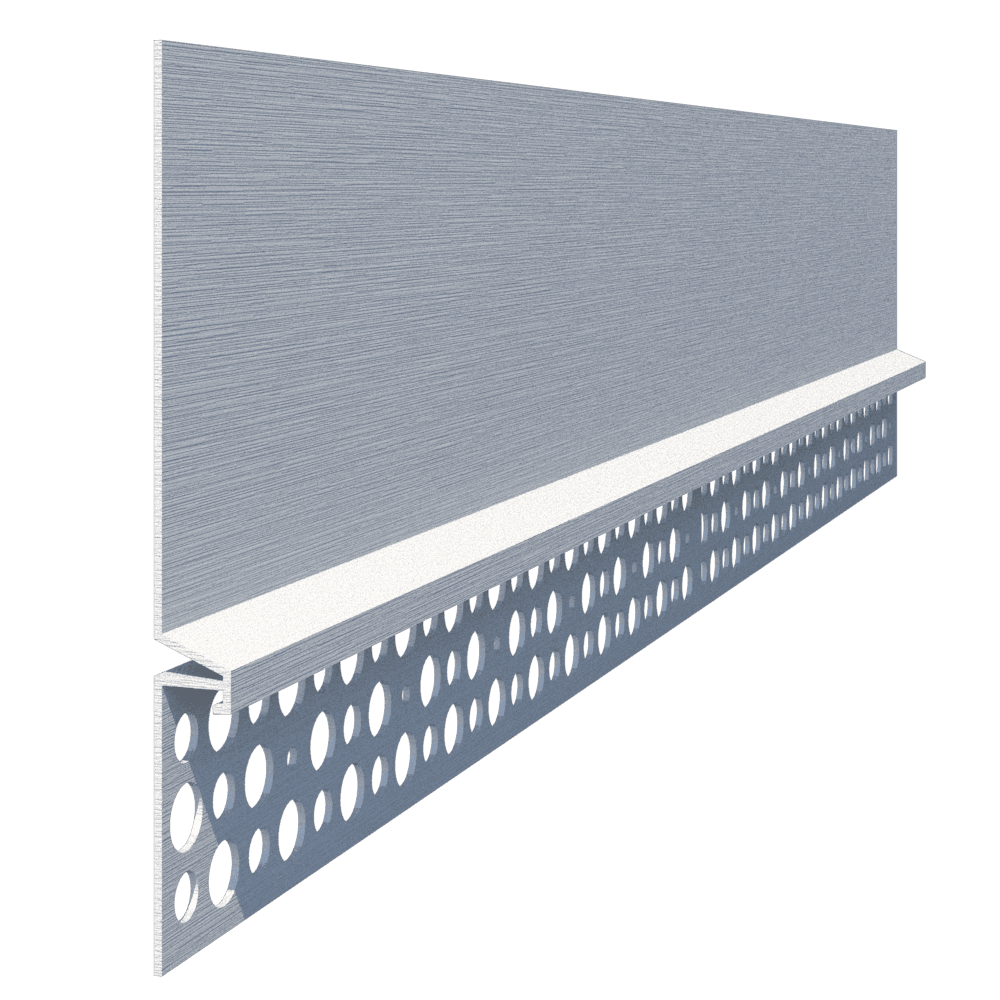

The mid-wall weep screed is designed to create a transition from stucco to lap siding while providing the necessary starting "offset" required for lap siding.
Quick Actions:
The mid-wall weep screed is designed to create a transition from stucco to lap siding while providing the necessary starting "offset" required for lap siding.
Product Data & Ordering Information

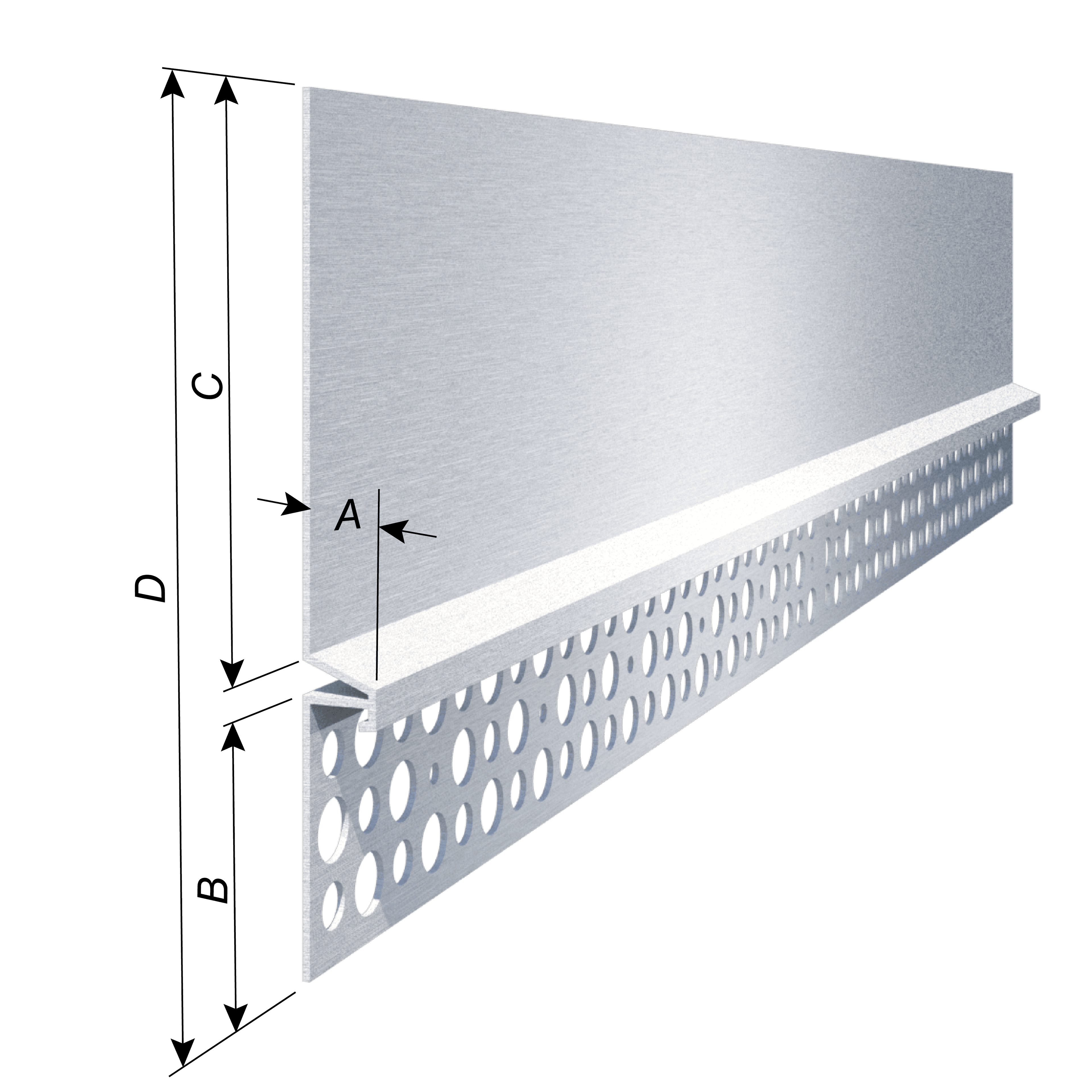

| Product code | Ground (A) | Bottom Flange (B) | Top Flange (C) | Overall height (D) | Length | Pcs./Box |
|---|---|---|---|---|---|---|
| STS50-350U | 1/2" | 3-1/2" | 1-3/4" | 5-1/2" | 10' | 15 |
| STS58-350U | 5/8" | 3-1/2" | 1-3/4" | 5-1/2" | 10' | 15 |
Caulk all intersections, butt joints, ends, and corners at time of installation.
