MEP Gusset PlateNew
ReSTORES structural integrity of steel framing with field modified openings
The MEP Gusset Plate is designed to provide strength and stiffness to framing members that are modified or field cut at the job site with oversized cutouts on the web of the member.
Quick Actions:

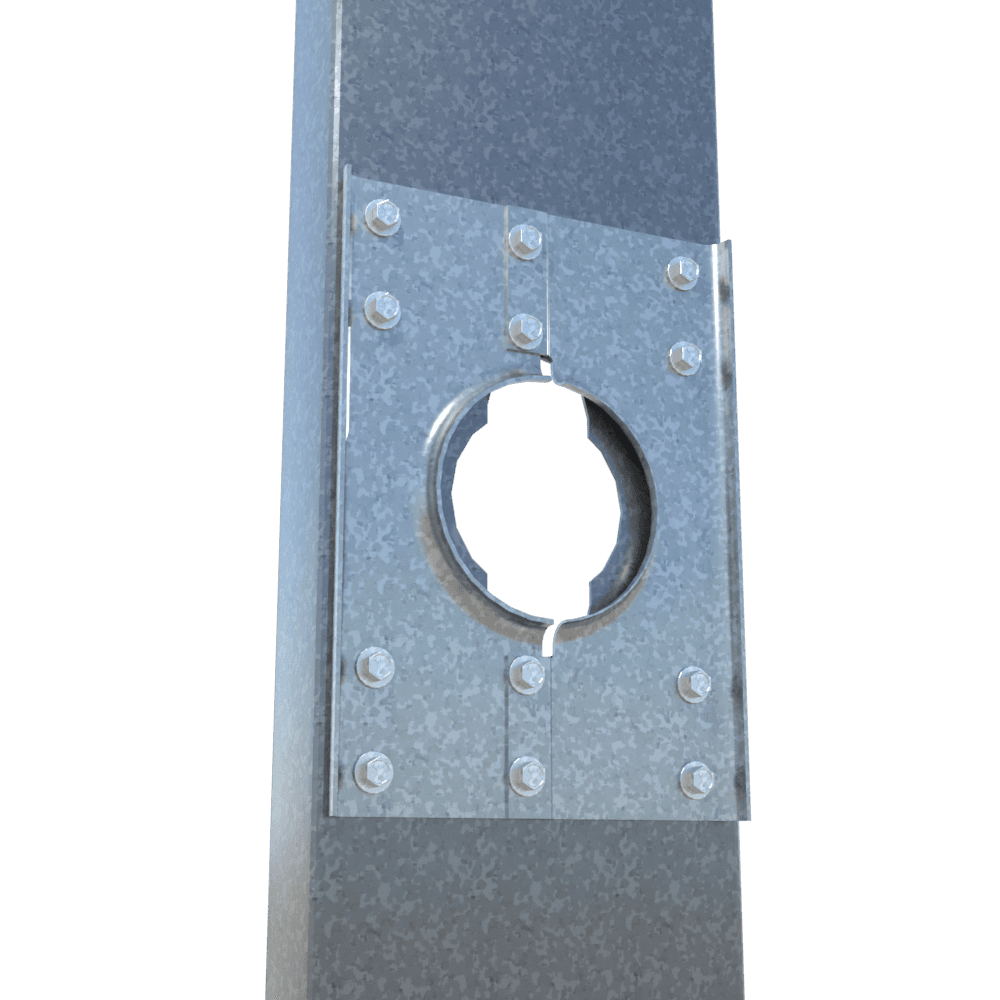

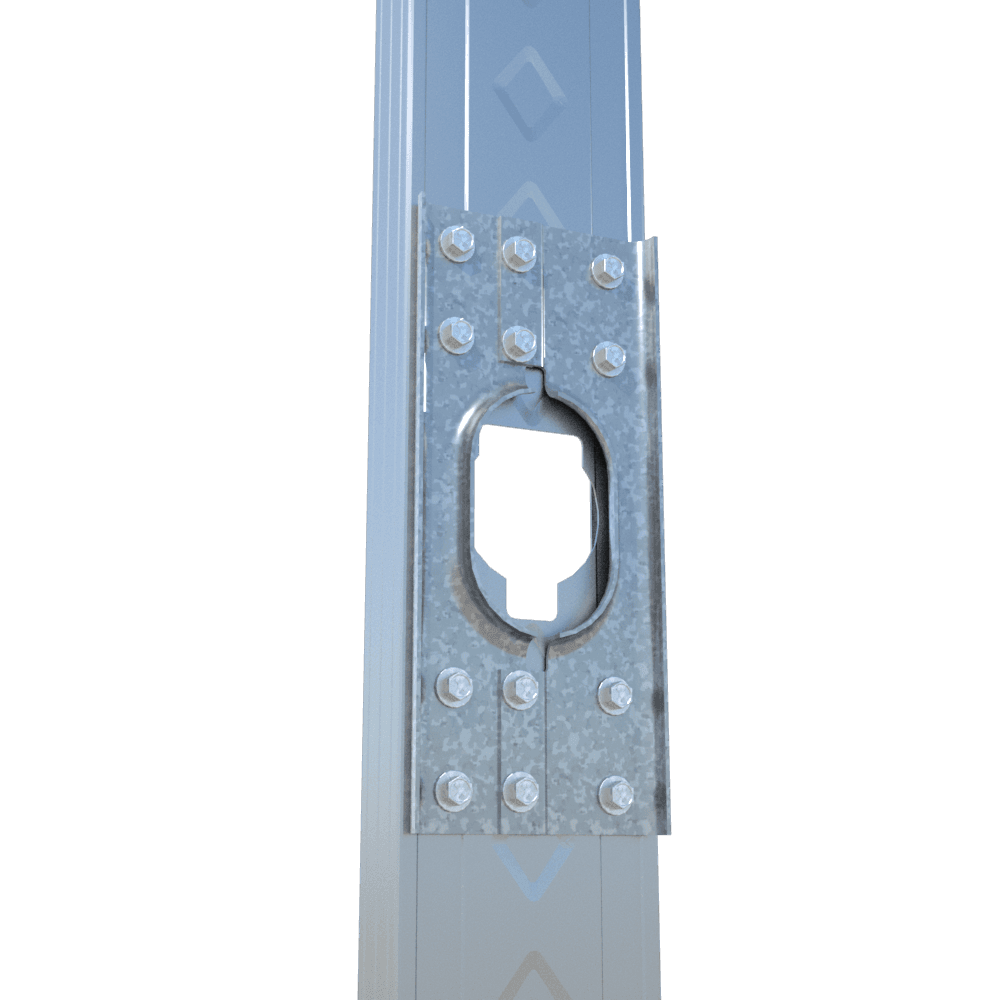

The MEP Gusset Plate is designed to provide strength and stiffness to framing members that are modified or field cut at the job site with oversized cutouts on the web of the member. The two-piece design allows the plate to be attached after MEP components have been installed. Restores structural integrity of steel framing with field modified openings.
- For use with 15mil to 97 mil framing members
- Not for use when flange is cut out.
Product Data & Ordering Information
Product Dimensions

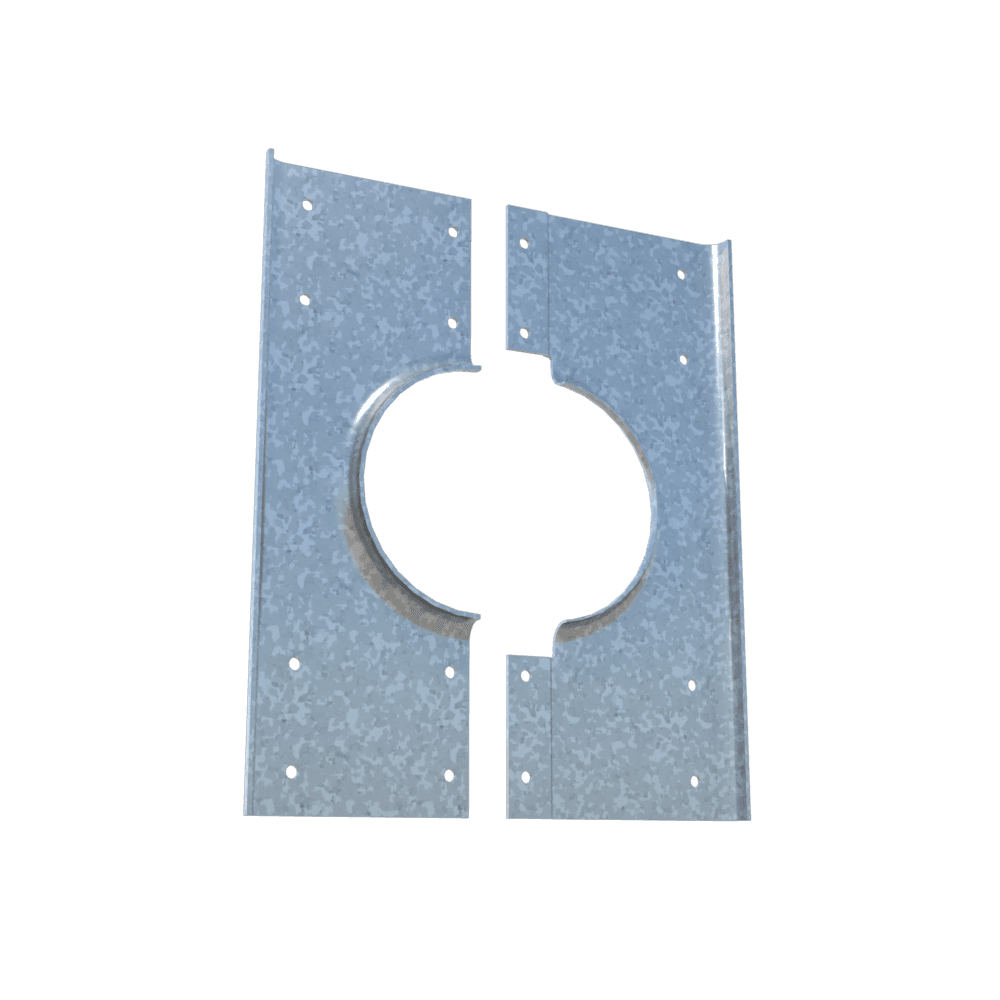

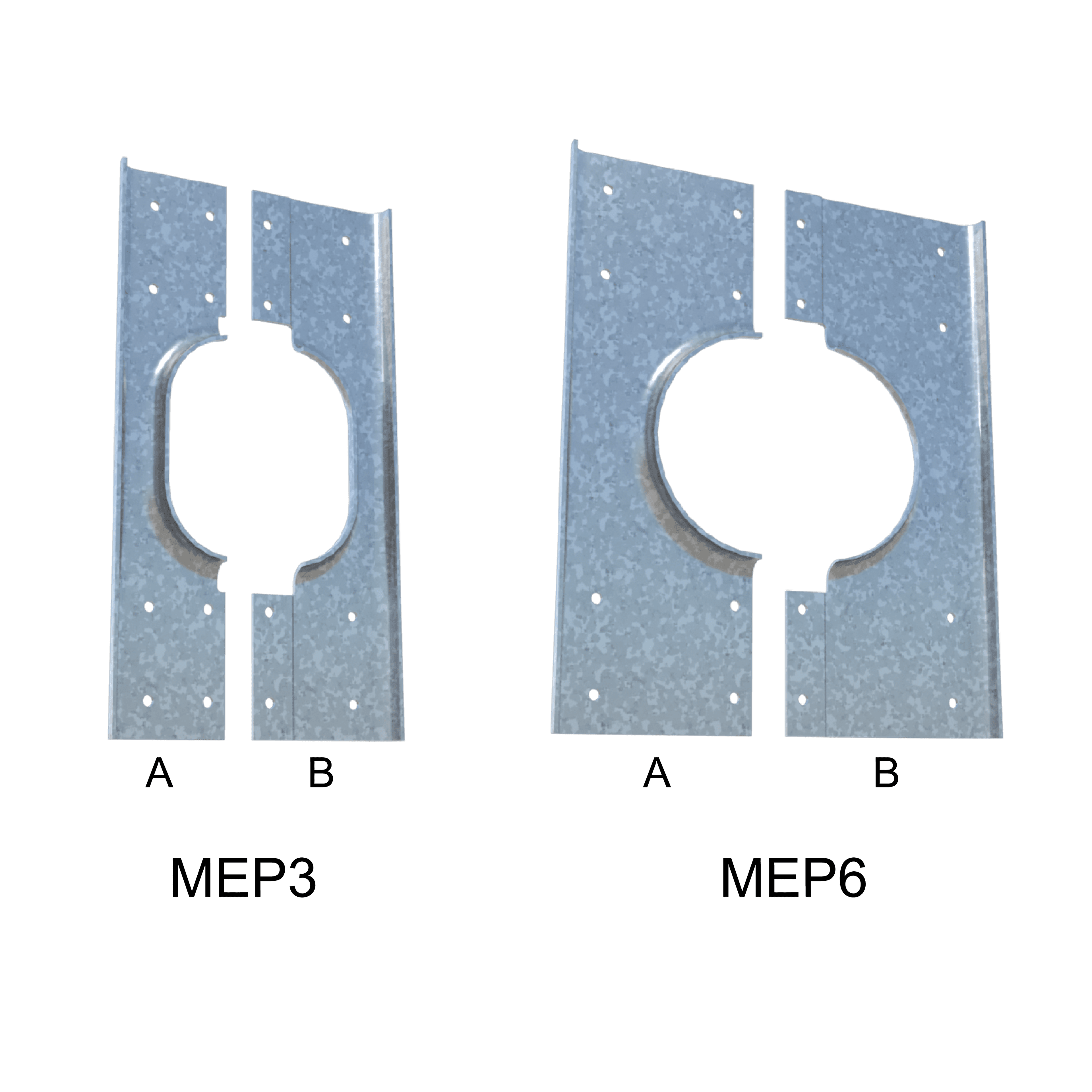

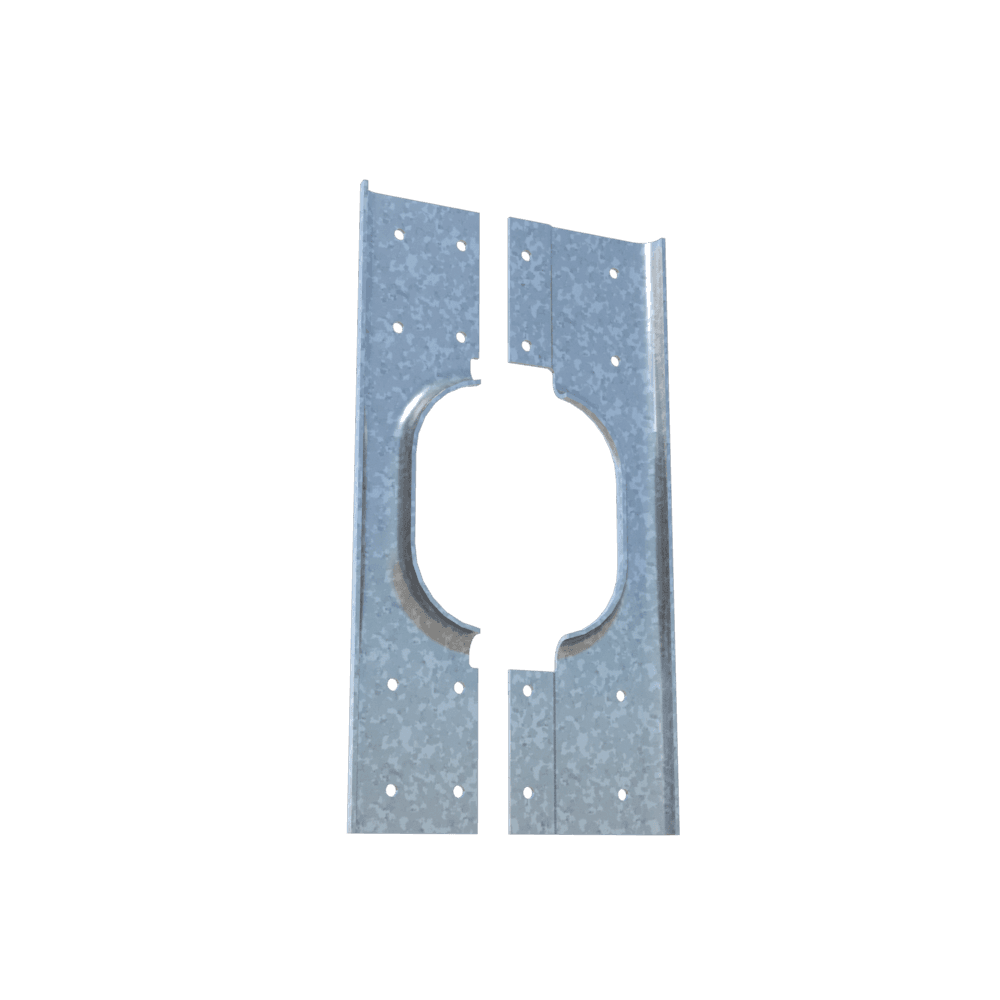

MEP3 = 3-1/2" x 8" assembled
MEP6 = 5-3/4" x 8" assembled
Material Specifications
Thickness: 16ga (54 mil), 0.0566" Design thickness, 0.0538" Min. thickness
Material: Structural Grade 50 Type H (ST50H), 50ksi
Coating: G90 (Z275) hot-dipped galvanized coating
| Product code | Packaging |
|---|---|
| MEP3 | 25 Sets (A & B) |
| MEP6 | 25 Sets (A & B) |
