Box Header Clip
Pre-punched Clip for box header Framing

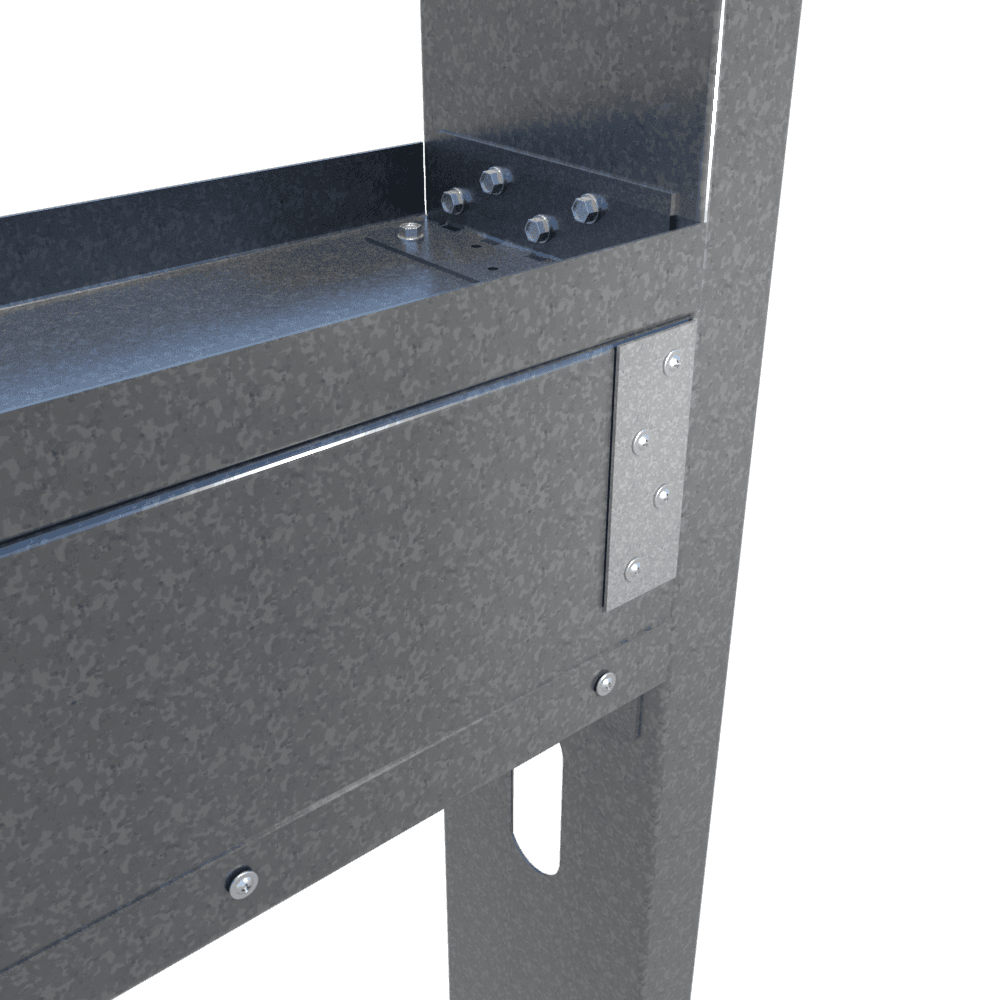

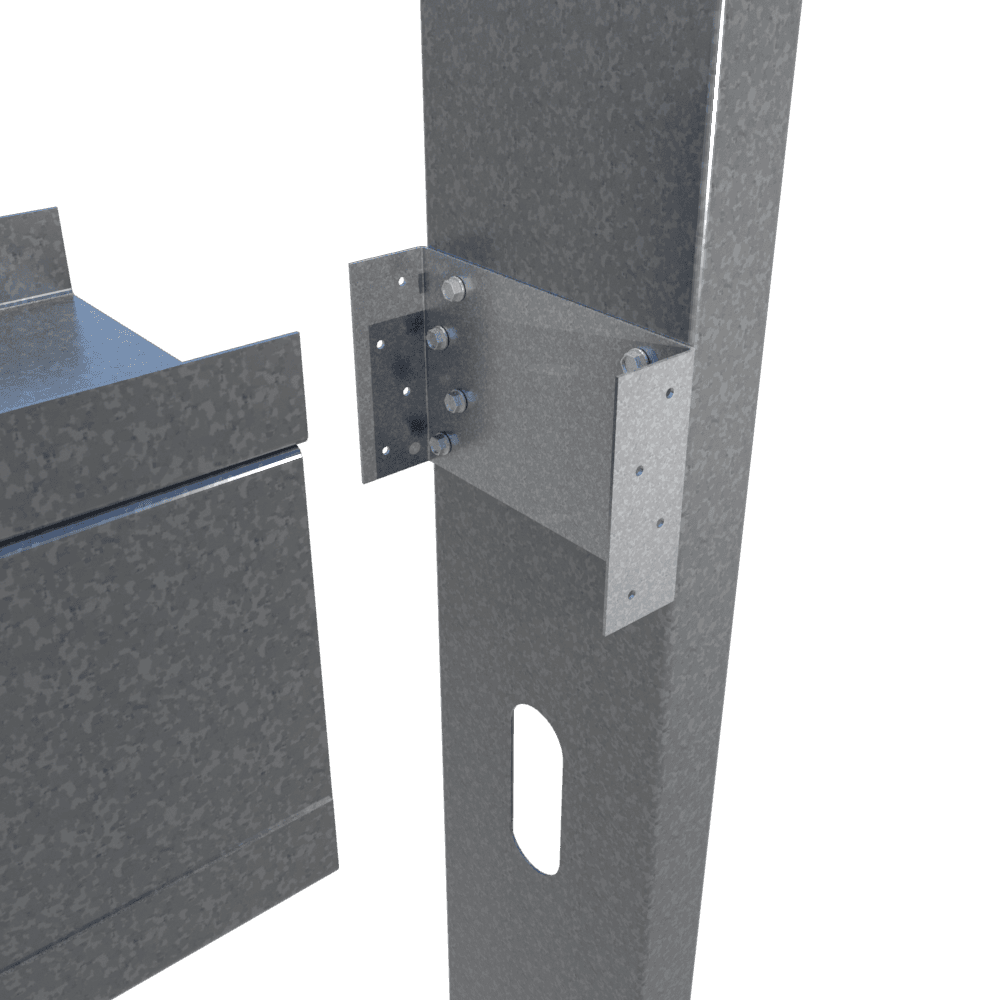

The Box Header Clip (BHC) is designed to eliminate field cutting metal track into sections. The BHC clip is pre-punched to promote a quick and accurate installation. It is available in a variety of sizes and thicknesses to accommodate different application requirements.
Quick Actions:
The Box Header Clip (BHC) is designed to eliminate field cutting metal track into sections. The BHC clip is pre-punched to promote a quick and accurate installation. It is available in a variety of sizes and thicknesses to accommodate different application requirements.

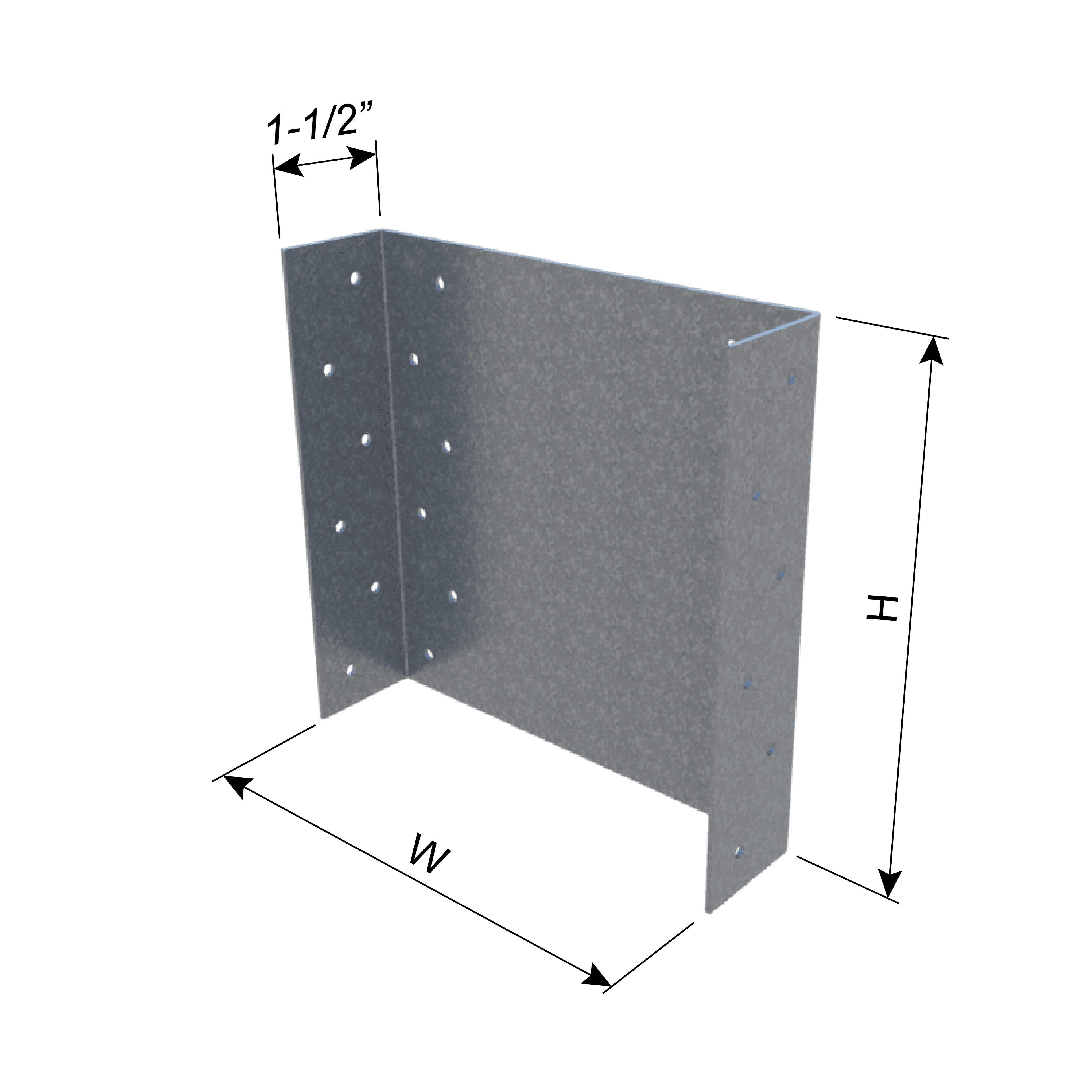

Product Dimensions
| Product Code | Width (W) | Height (H) |
|---|---|---|
| 362BHC2 | 3-5/8" | 2" |
| 362BHC4 | 3-5/8" | 4" |
| 362BHC6 | 3-5/8" | 6" |
| 362BHC8 | 3-5/8" | 8" |
| 362BHC10 | 3-5/8" | 10" |
| 600BHC2 | 6" | 2" |
| 600BHC4 | 6" | 4" |
| 600BHC6 | 6" | 6" |
| 600BHC8 | 6" | 8" |
| 600BHC10 | 6" | 10" |
| 800BHC2 | 8" | 2" |
| 800BHC4 | 8" | 4" |
| 800BHC6 | 8" | 6" |
| 800BHC8 | 8" | 8" |
| 800BHC10 | 8" | 10" |
